Motor Selection Guide

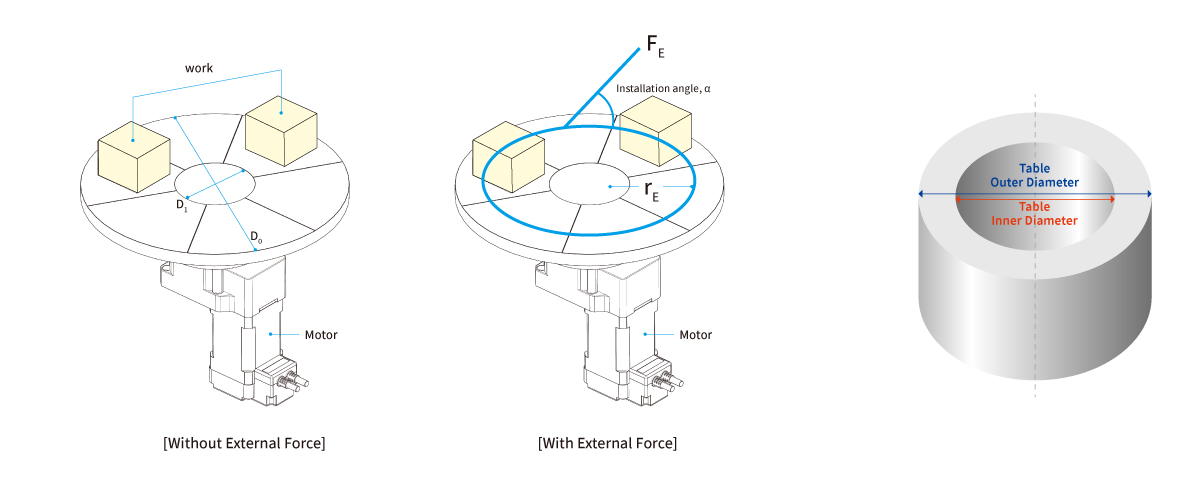

Basic DATA for Calculation
설명이미지
If you enter values in the yellow fields, the rest of the values are calculated automatically.
  • Total weight of table & work
    W = kgf
  • External Force
    FE = kgf
  • Total mass of table & work
    m = kg
  • External Force Action Angle
    a = ˚
  • Table External Diameter
    D0 = cm
  • Radius to point of application of external force
    rE = cm
  • Table Inner Diameter
    D1 = cm
  • Gear Ratio
    R =
  • Table Turning(Rotation) Angle
    Θ = ˚
  • Gear Efficiency
    ηR = 0%
  • Positioning Time
    t0 = sec
  • Safety Factor
    S =
  • Time of Acc/Dec
    t1 = sec
  • Bearing Coefficient of Friction
    μ =
  • Gravitational acceleration
    g = m/sec²
Refresh Calculate
Operation Speed and Acceleration Calculation
  • Index Table Rotaion Angular Velocity
    ωT = (Θ × π / 180) / (t0-t1) = rad/sec
  • Index Table Rotaion Velocity
    ωT = {(Θ / 360) / (t0-t1)} × 60 = rpm
  • Operation Motor Revolution Angular Velocity
    ωΜ = ωT × R = rad/sec
  • Operation Motor Revolution Velocity
    ωΜ = (ωT × R) / 2π × 60 = rpm
  • Operating Motor Resolution Angular Acceleration
    ωM =
    • ωM
    • t1
    =
    = rad/sec²
Motor Selection
See Torque Curves of Selected Motor
Torque curve
그래프
그래프
그래프
  • Consider Rotor's Inertia Moment as J0 = 0,
  • Motor Operation Torque
    TM = so, from FASTEH Motor Torque curves
  • Operating motor revolution velocity
    ω M = rpm at
  • Operating Torque is
    T M = Select motor offers over N.m from curves
Verify validation of selected motor
View rotor moment of inertia
Rotor moment of inertia
로터 관성 모멘트
  • From selected motor spec, need to file out inertia moment J0
  • J0 g · cm² = kg · cm² kg · m²
  • Motor's operating Torque re-calculation with consideration of motor inertia moment
  • T N·m
  • [ Verify validation of selected motor ]
  • From selected motor's torque curve
  • Selected motor's revolution velocity
    ωM = rpm at
  • Selected motor's torque is
    T = is over : OK.
  • Selected motor's torque is
    T = is less than : NG.
  • Repeat Motor selection and Verify Validation width increasing motor's length or size
Refresh Calculate
Check Load’s Intertia Moment Ratio K
  • K =
    • JL
    • J0 × R²
    =
    • × ²
    =
  • Check Load's Intertia Moment Ratio K
    Can operate but motor's inappropriate opation (vibrating at Acc/Dec) can be happened So, please input enough Acc/Dec and need to decrease operation speed If you can't control Acc/Dec and need to decrease operation speed, please increase one level of motor's length or size, We would like to recommend to choose bigger motor has higher inertia moment. In case of using reducer, even selected motor's operation torque is enough but load inertia moment ratio "K" is not satisfied, We would like to recomment to choose incrased ration of reducer.
